After using my Resound MultiMic, I realized what a difference remote microphones could make. I wanted to use multiple microphones at once in several difference situations, and found that the Phonak Roger system could do that. I started looking in to Phonak Roger and trying several different components. I found that getting information on what was available was a little difficult, so I wanted to put a quick reference out for anyone else who may need it. In subsequent post I will talk about the individual component and review their functionality. The information below comes from my own research, so if you find something that is incorrect please let me know.
Phonak Roger is Not FM
Many people confuse Phonak Roger with the older FM systems, but Roger is actually completely new technology. Older FM systems transmitted an analog signal on FM frequencies (72.025 to 75.975 MHz and 216 to 217 MHz), and only transmitted on one channel at a time making it prone to interference, range problems, and ease dropping. Phonak Roger transmits at 2.4GHz (ISM band) using digital transmission and frequency hoping technology to decrease dead spots, improve sound quality, and secure the transmission. For more information on the Phonak Roger wireless technology, click this link.
Roger Microphones
With most of the microphones below you can link multiple of them together and even mix and match microphones (like a roger pen and 2 clip-on mics). There are some limitations to this, which I will talk about more when covering the microphones individually in additional posts (for instance… when you have multiple Roger Pens linked, only one can be in conference mode, the rest go in to neck-worn mode). When the microphones are linked, they do not all transmit at once. The microphone that picks up speech first will transmit until it no longer hears speech. At that point the system will switch to the next microphone that detects speech.
The Roger Select is one of the newest microphone in the Roger line-up. Roger Select features MultiBeam Technology, by utilizing multiple microphones, beams are created in six directions to cover 360°. The signal-to-noise ratio for all six direction is calculated and the beam with the best clarity is automatically selected. This provides improved speech understanding in group conversations such as in noisy restaurants or family gatherings. The MultiBeam Technology should provide a large improvement over standard microphone configurations in noisy situations.
Roger Pen
The Phonak Roger Pen has three different microphone operating modes. Conference mode (when laying on a table), Interview mode (when held at an angle), and neck-worn. The Roger Pen can automatically switch microphone modes based on its position, or you can manually select the mode. In Conference mode it will pick up audio from all around. In Interview mode the microphone will become directional and pick up the voice of whoever it is pointing at, while blocking out noise from around the pen. In neck-worn mode it will become highly directional with a shorter pick-up range in order to just pick up whoever is talking directly above it. The Roger pen also has Bluetooth connectivity for connecting to cellular phones and other Bluetooth devices. Using an included cable, you can also connect the Roger Pen to other audio sources like a TV or headphone jack on a computer.
The Roger EasyPen has the same three microphone modes as the Roger Pen. With the Roger EasyPen you cannot manually select the microphone modes, and it does not have Bluetooth. Like the RogerPen, the Roger EasyPen can be connected to an audio source using a cable.
The roger clip-on mic is made to be worn clipped to a shirt or lanyard. It picks up speech from directly above it. The Clip-On Mic can also be used to stream audio from another source using the included cable.

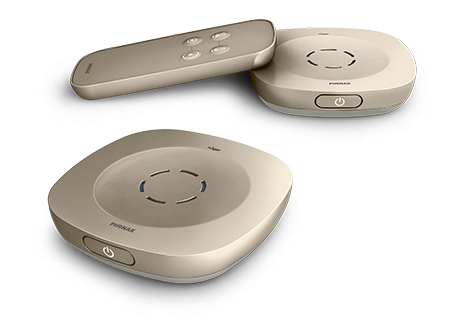

The Roger Table Mic is specifically designed to be used in meetings. It picks up audio from all around while filtering out background noise like projector fans, coughs, etc… For large meetings (15+) people, you can use multiple Table Mics to pick up sound from all around the room. The Table Mic can also be connected to other audio sources, and has a remote control that can be used to mute/un-mute the microphone.
The Roger Table Mic II includes all of the features of the original Table Mic, but also has MultiBeam Technology. By utilizing multiple microphones, beams are created in six directions to cover 360°. The signal-to-noise ratio for all six direction is calculated and the beam with the best clarity is automatically selected. Providing exceptional speech understanding in group conversations such as in noisy restaurants or family gatherings and meetings.
Roger Touchscreen Mic and Roger Pass-around
The Roger Touchscreen Mic and Roger Pass-around are geared for educational use. The Roger Touchscreen Mic is worn by a teacher and the Pass-around is passed to other students to allow them to talk on the system as well. Multiple Touchscreen Mics and Pass-arounds can be used together in a network. The Touchscreen Mic and Pass-around only work with the newer Roger receivers, they are not backwards compatible to older FM systems.
Roger Inspiro and Roger DynaMic
The Roger Inspiro and Roger DynaMic are also geared toward educational use and have similar functionality as the Roger Touchscreen Mic and Roger Pass-around. The Inspiro and DynaMic will work with Phonak Roger and older FM systems.
Roger Receivers
The Phonak Roger system has several different receivers that enable the system to be used with almost any hearing aid, Bone Anchored Hearing Aid (BAHA), or Cochlear implant.
Roger design-integrated receivers
The design integrated receivers are made to blend in with the design of Phonak hearing aids as well as some Cochlear implants from Choclear and Advanced Bionics. The design integrated receivers will work with the full line of Roger microphones includiong the Touchscreen Mic and Inspiro.
Roger X
The Roger X receiver uses a Direct Audio Input connection (DAI, a.k.a Europlug) and can be used on many hearing aids (with a DAI boot), Cochlear implants, and neck-worn streamers. The Roger X come in two different versions. One is a lower cost type 3 (03) that works with the Roger Pen, EasyPen, Clip-On Mic, and Table Mic. The other is the type 2 (02) which costs a little more, but adds support for the educational based mics (TouchScreen and Inspiro), as well as some settings adjustments that can be made using the Inspiro for gain, and comparability. For more information on the differences between the 02 and 03 Roger X receivers, click this link.
Roger MyLink
The Roger MyLink is a neck-worn streamer that works with hearing aids that contain a TeleCoil (T-Coil). The Mylink also has a standard 3.5mm headphone jack that allows it to be plugged in to other devices like sound systems, or hearing aid streamers with a 3.5mm input.
Roger Focus
The Roger Focus is a behind-the-ear receiver made for people with normal hearing, but that have attention related issues. It is intended to limit distractions by bringing the teacher’s voice directly in to the persons ear to help with focus and understanding. The Roger Focus is not a hearing aid, it is simply a receiver for Roger microphones.
